WAVE

ui

The WAVE node is a software signal generator capable of generating several wave forms.

Properties

  • Running: Generate data.

  • Sample Rate: Sample rate of the signals.

  • Poll Interval: How often to generate data in ms (Sample Rate = 1000 and Poll Interval = 16 generates 16 samples of data every 16 seconds)

  • View: Open window to visualize signals.

Usage

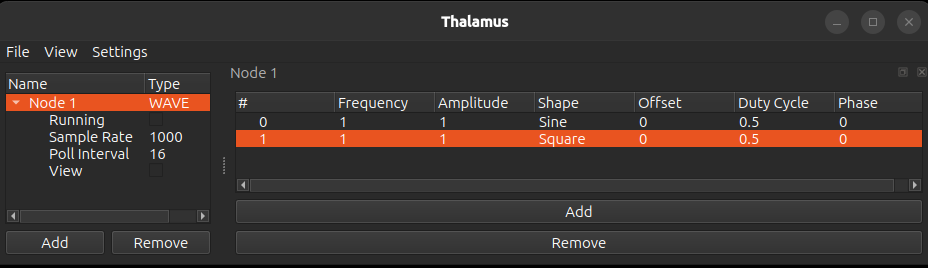

In the node widget you can add a signal with the add button and remove selected signals with the remove button and each signal has the following properties

  • #: Incrementing number, also the name of the signal channel

  • Frequency: Frequency of the signal

  • Amplitude: Amplitude of the signal

  • Shape

    • Sine: Sine wave

    • Square: Square wave

    • Triangle Wave: Triangle wave

    • Random: At a rate equal to the signal frequency this signal randomly switches to either \(amplitude + offset\) or \(offset\)

  • Offset: Signal DC offset

  • Duty Cycle: What portion of the signal period is it high. Only applies to square waves.

  • Phase: Phase shift to apply to signal

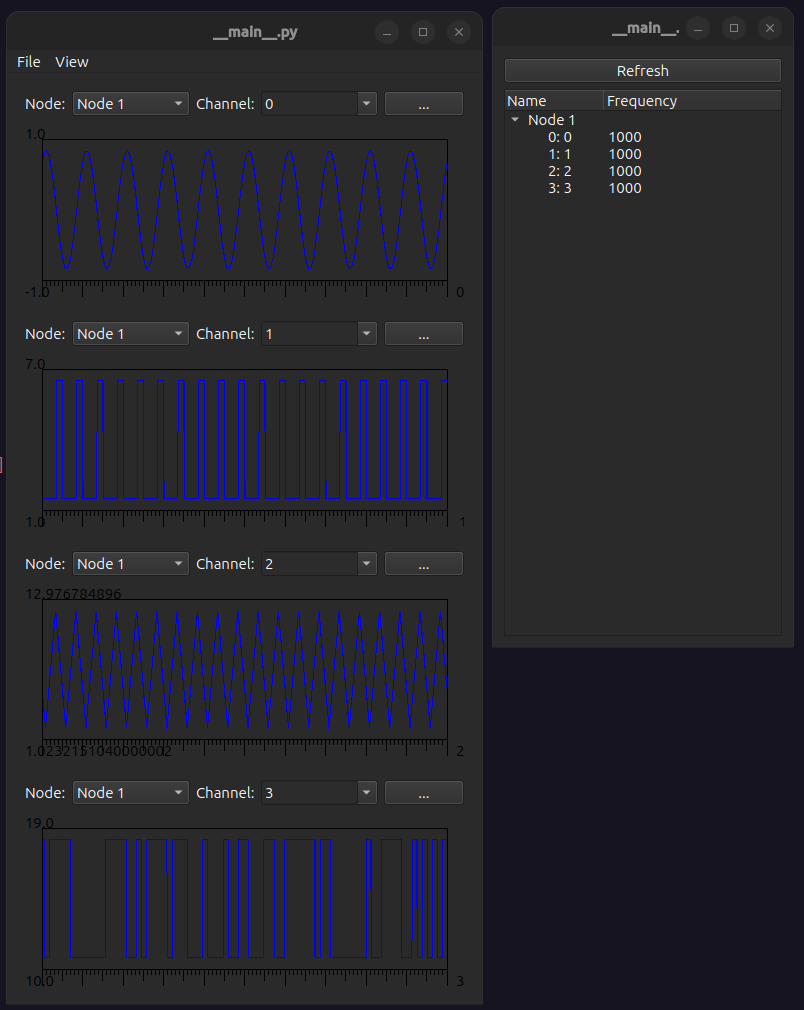

signals
